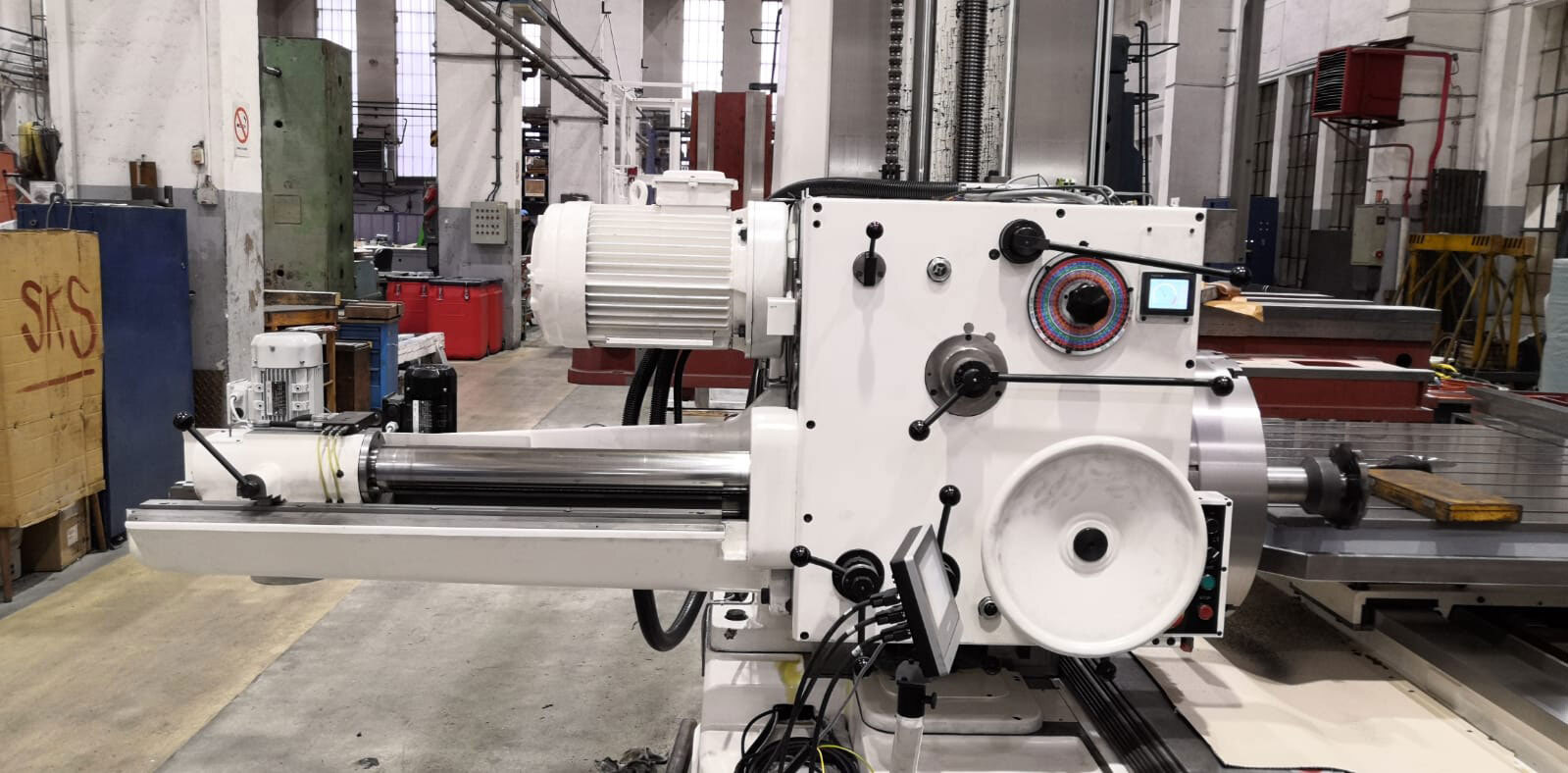

Horizontal Boring Machine TOS W100 A
TOS W100A Horizontal Boring Machines with 100 mm Spindle Size are used for heavy-duty industrial applications because of their ability to shape large components. This machine is equipped with tail stock and is perfect for line boring. TOS W100 A Horizontal Boring is also equipped with a pendant control for easy operation of various axis of the machine. The machine has hard and ground self lubricating guide ways with motorized ISO 50 spindle.
Description:
Machine Type: Horizontal Boring Machine
Machine Make: TOS
Machine Model: W100 A
Features: Easy Installation, Pocket friendlyprices, Minimum Maintenance.
Technical Specifications:
| Table Type | Rotary Table |
| X-Axis | 1600 mm |
| Y-Axis | 1120 mm |
| Z-Axis | 1250 mm |
| W-Axis | 900 mm |
| Facing Chuck | 600 mm |
| Size Of The Table | 1250 x 1250 mm |
| Dimension L X B X H | 6020 x 3000 x 3500 mm |
| Weight Of The Machine | 14000 Kg |
| Size Of The Spindle | 100 mm |
| Speed Of The Spindle | 7-1120 rpm |
| Spindle Taper | ISO 50 |
| Feeds For Milling (18 Stages) | 18-900 mm/min |
| Feeds For Boring (32 Stages) | 0.02-12 mm/rev |
| Thread Cutting Range (Metric) | 0.25-12 mm |
| Rapid Traverse | 2800 mm/min |
| Max Work-Piece Weight | 3000 Kg |
| Total Power Consumption | 15 KVA |
Used Horizontal Boring Machine TOS W100 A in very good working condition at a very competitive price.
