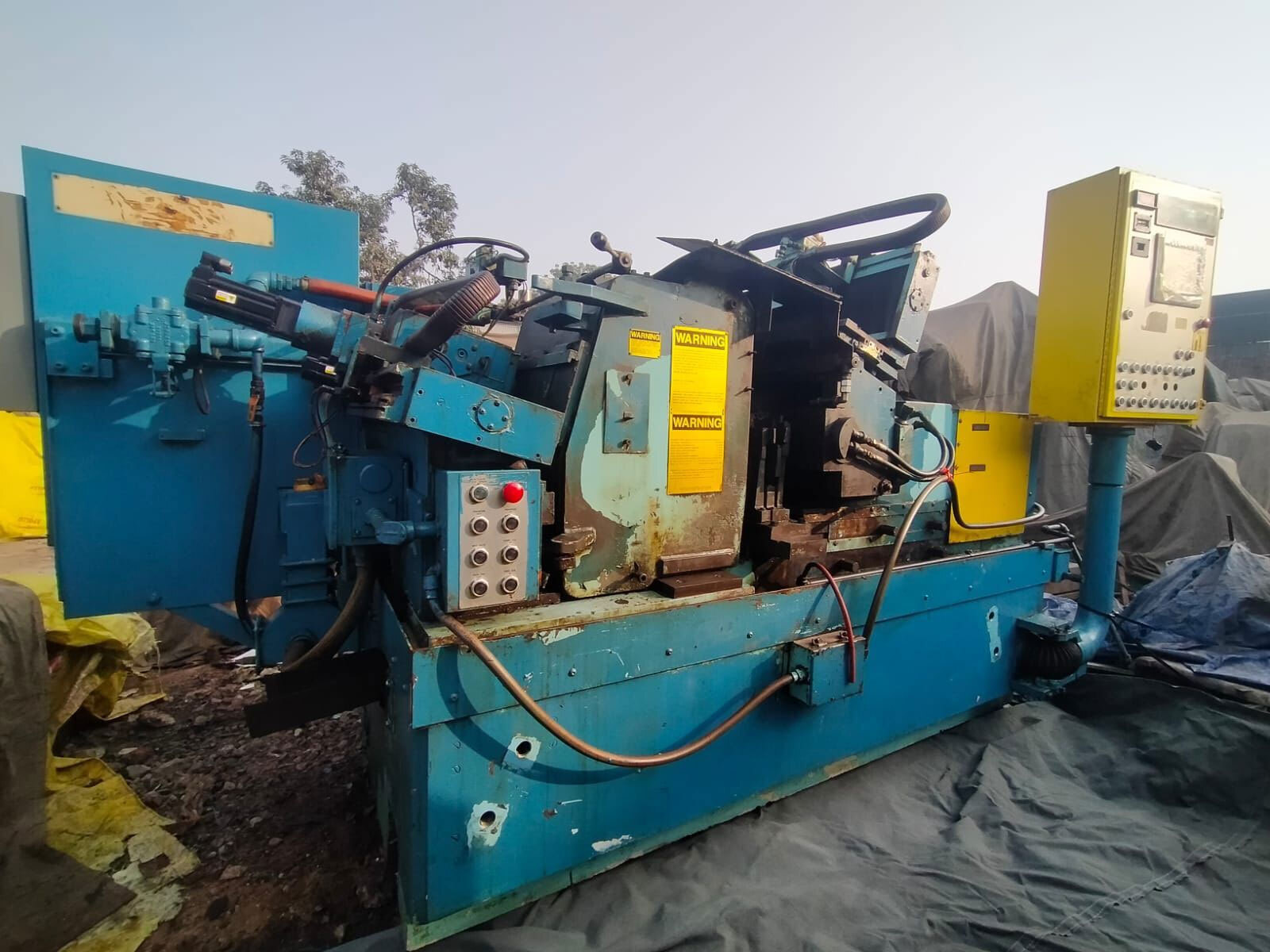

Centerless Grinder Cincinnati 230-10 Twin Grip
When the ultimate in precision is required, the Cincinnati 230-10 Twin Grip Centerless Grinding Machine is the natural choice. It is called a twin grip grinder as both the regulating wheels & grinding wheel spindles have outboard support bearings, compared to cantilevered spindles on other machines. If you require ultra high precision or very demanding feed rates, then this is the machine foryou.
Cincinnati Centreless is a general purpose grinding machine suitable for a wide range of through feed and in feed application.

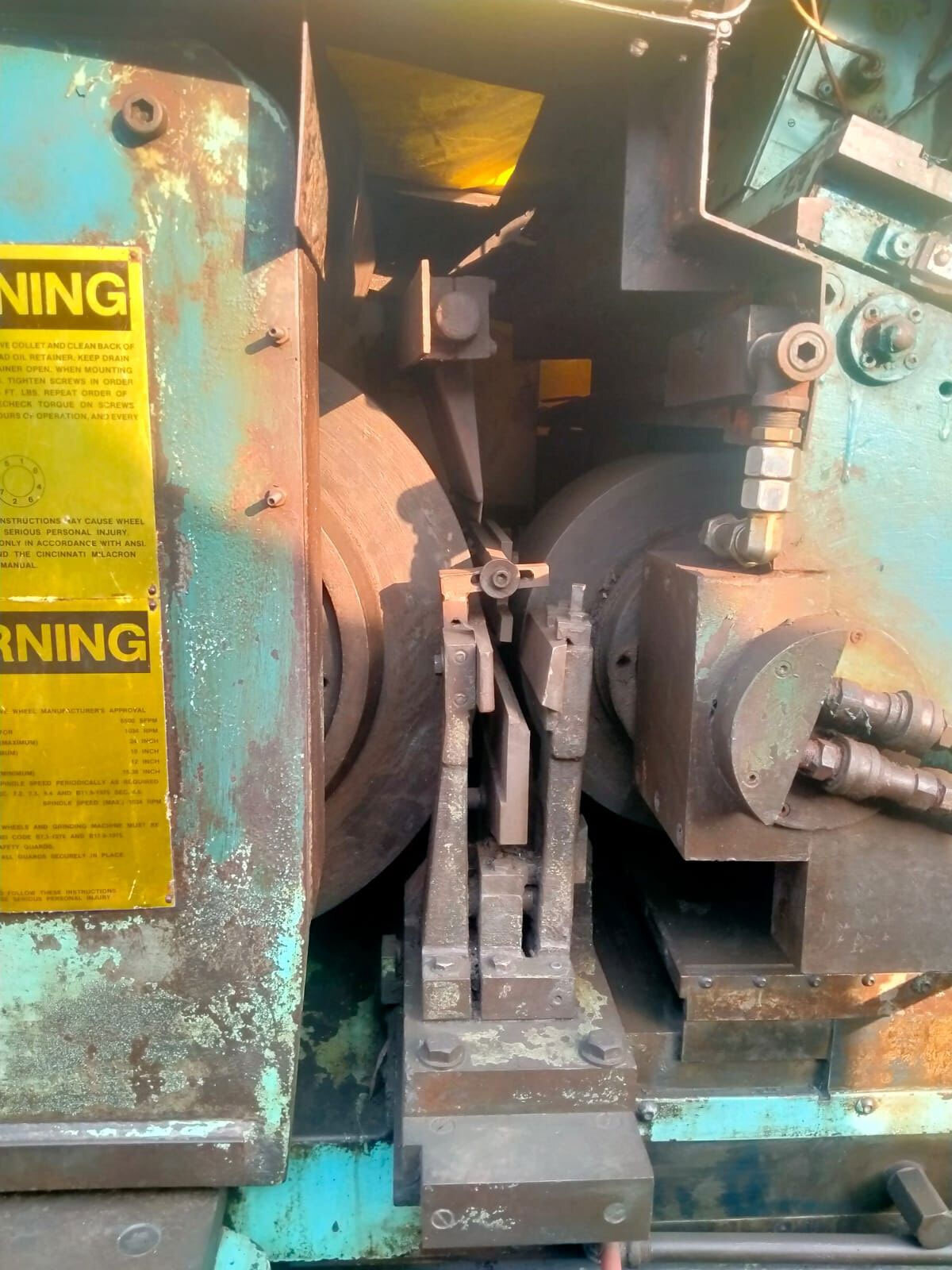

In the Centreless Grinder Cincinnati, Workpiece is secured between two rotary grinding wheels width 250 mm
Description:
Machine Type: Centreless Grinder
Machine Make: Cincinnati
Machine Model: 230-10 Twin Grip
Features: Ready to Use, Noiseless Spindles,High Accuracy
Technical Specifications:
| Diameter capacity, Optimal | 1.0-65 mm |
| Diameter capacity, Maximum | Upto 120 mm |
| Min. Grinding Wheel Dia | 445 mm |
| Max. Grinding Wheel Dia | 510 or 610 mm |
| Max Grinding Wheel Width | 250 mm |
| Grinding Wheel Hole Dia | 305 mm |
| Grinding Wheel Motor | 15 HP Standard, upto 40 HP |
| Max Grinding Wheel Speed | 10500 SFPM |
| Min Regulating Wheel Dia | 240 mm |
| Max Regulating Wheel Dia | 240 mm |
| Max Regulating Wheel | 200 mm |
| Regulating Wheel Hole Dia | 130 mm |
| Regulating Wheel Speed Range | 0-300 RPM |
| Regulating Wheel Motor | 1-1/2 HP |
| Static Stiffness | 45000 Kg |
| Machine Footprint Approx. | 255 X 150 X 200 mm |
| Weight Approx. | 7500 Kg |
Buy Used Cincinnati 230-10 Twin Grip Centreless Grinder in very good working condition at a verycompetitive price.
