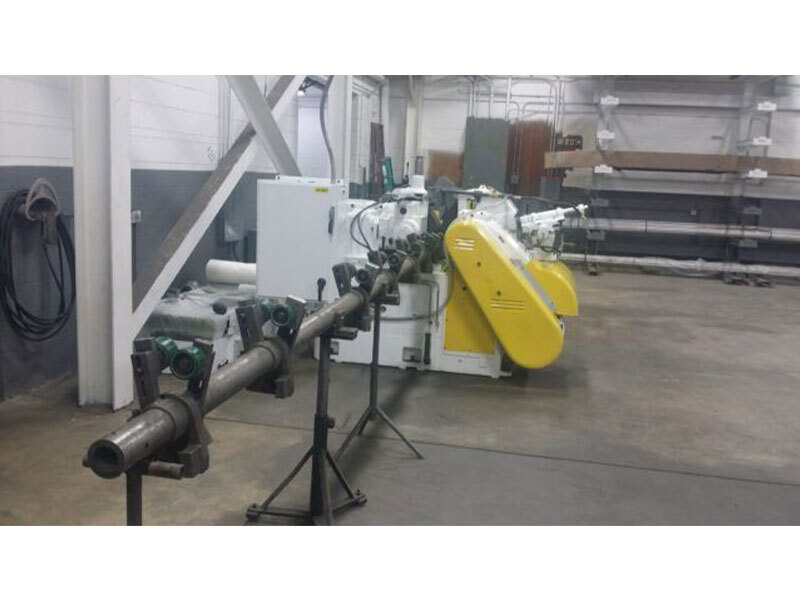

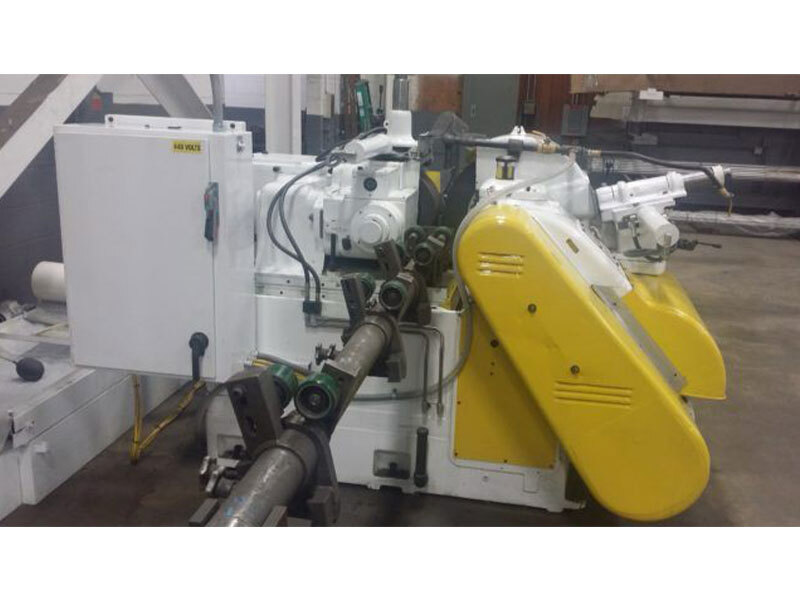

Cincinnati 3 EA Centreless Grinding Machine
The Cincinnati 3EA Centerless Grinder is a widely recognized industrial machine used for precision grinding operations. Designed for high accuracy and productivity, it is ideal for machining cylindrical workpieces without the need for a center, making it highly efficient for both high-volume production and custom jobs.
Description:
Machine Type: Centerless Grinder
Machine Make: Cincinnati
Machine Model: 3 EA
Features of Cincinnati 3 EA Centerless Grinding Machine:
Centerless Grinding Mechanism: Eliminates the need for a fixed spindle or centers. Parts are supported by a combination of the regulating wheel and the grinding wheel.
Hydraulic Truing System: For grinding and regulating wheels, ensuring consistent wheel shape and surface finish.
Filmatic Bearings: High precision bearings extend the life of the machine and improve operational accuracy.
Technical Specifications:
| Standard Thru-Feed Work Rest | 12.7 - 76.2 mm |
| Heavy Duty Thru-Feed Work Rest | 50.8 - 152.4 mm |
| Minimum W/Special Work Rest | 6.35 mm |
| Standard Infeed Work Rest | 12.7 - 152.4 mm |
| GRINDING WHEEL SPINDLE | Made of heat treated chrome nickel steel, bearings diameters lapped |
| Size, Front & Rear Bearings | 120.65 mm Dia X 190.5 mm Long |
| REGULATING WHEEL SPINDLE | Made Of Heat Treated Chrome Nickel Steel |
| Size, Plain Bearing At Front | 101.6 mm Dia X 139.7 mm Long |
| Size, Plain Bearing At Rear | 66.67 mm Dia X 95.25 mm Long |
| WHEEL | |
| Grinding Wheel | 609.6 mm Dia X 304.8 mm Hole X 101.6 to 203.2 mm Face |
| Regulating Wheel | 355.6 mm Dia X 127 mm Hole X 101.6 to 203.2 mm Face |
ï
Available for sale in Delhi, Used Cincinnati 3 EA Centerless Grinder in as good as new working condition along with the best prices.
