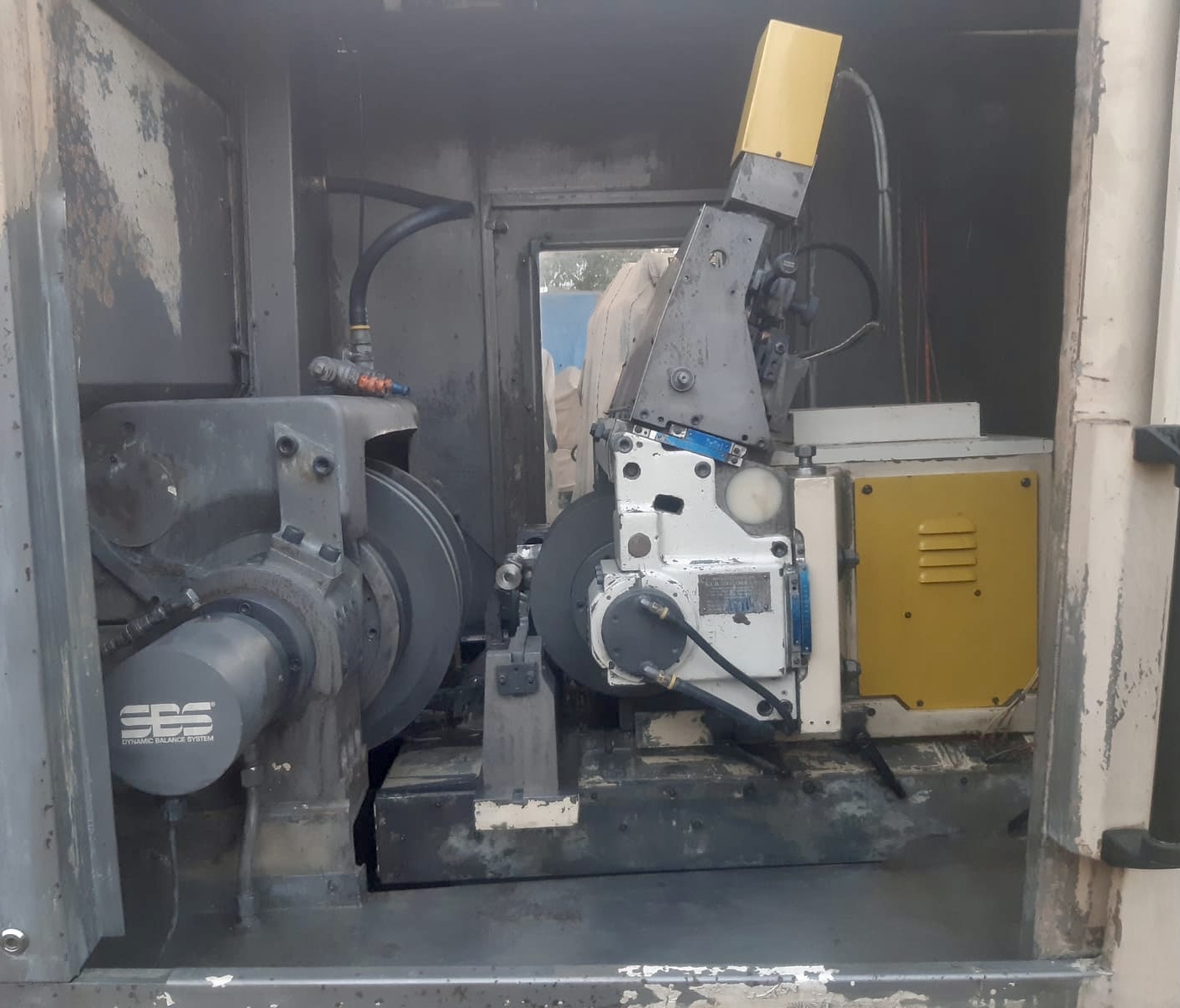

Cincinnati 340-20 Twin Grip CNC Centerless Grinder
It is called a Twin Grip grinder as both theregulating wheel and grinding wheel spindles have outboard support bearings,compared to cantilevered spindles on other machines. With a 600 X 500 wheelsize and 20 Inch of grinding wheel width capacity, this machine will tackle themost demanding thru feed applications with ease. It also excels at highprecision infeed grinding for long and large parts.
If you are lookingfor additional capability or precision, all ways Precision has the answer. Wehave a complete line of automation and CNC upgrades for our machines to notonly improve precision but also increase productivity. Reach out to us today tofind out more about how we can help improve your operation today.
Common Applications:
Infeed grindinglong parts (up to 20 inch length)
High volume orheavy stock removal thru feed grinding
Large diameter bargrinding
Description:
Machine Type: CNC Centreless Grinder
Machine Make: Cincinnati
Machine Model: 340-20 Twin Grip
Features: Easy Installation,Pocket friendly prices, Minimum Maintenance
Technical Specifications:
| Control | Fanuc 35i |
| Year Of Construction | 2015 |
| Max Grinding Diameter | 155 mm |
| Standard Thru Feed & In feed Work Rest | 13 - 77 mm |
| Grinding Wheel Hole | 305 mm |
| Max Dia Of Grinding Wheel | 610 mm |
| Min Dia Of Grinding Wheel | 435 mm |
| Grinding Wheel Width | Upto 508 mm |
| Regulating Wheel Hole | 155 mm |
| Max Dia Of Regulating Wheel | 360 mm |
| Min Dia Of Regulating Wheel | 270 mm |
| Regulating Wheel Width | Upto 508 mm |
| Regulating Wheel Speeds Low Range | 12 - 56 RPM |
| Regulating Wheel Speeds High Range | 56 - 300 RPM |
| Grinding Wheel Drive | 40 HP |
| Regulating Wheel Drive | 2 HP |
| Hydraulic Pump | 1 HP |
| Speed Changes | Var. Pitch Sheaves And Gear Shift |
Buy used CNCCentreless Grinding Machine Cincinnati 340-20 Twin Grip in very good working condition at a verycompetitive price.
