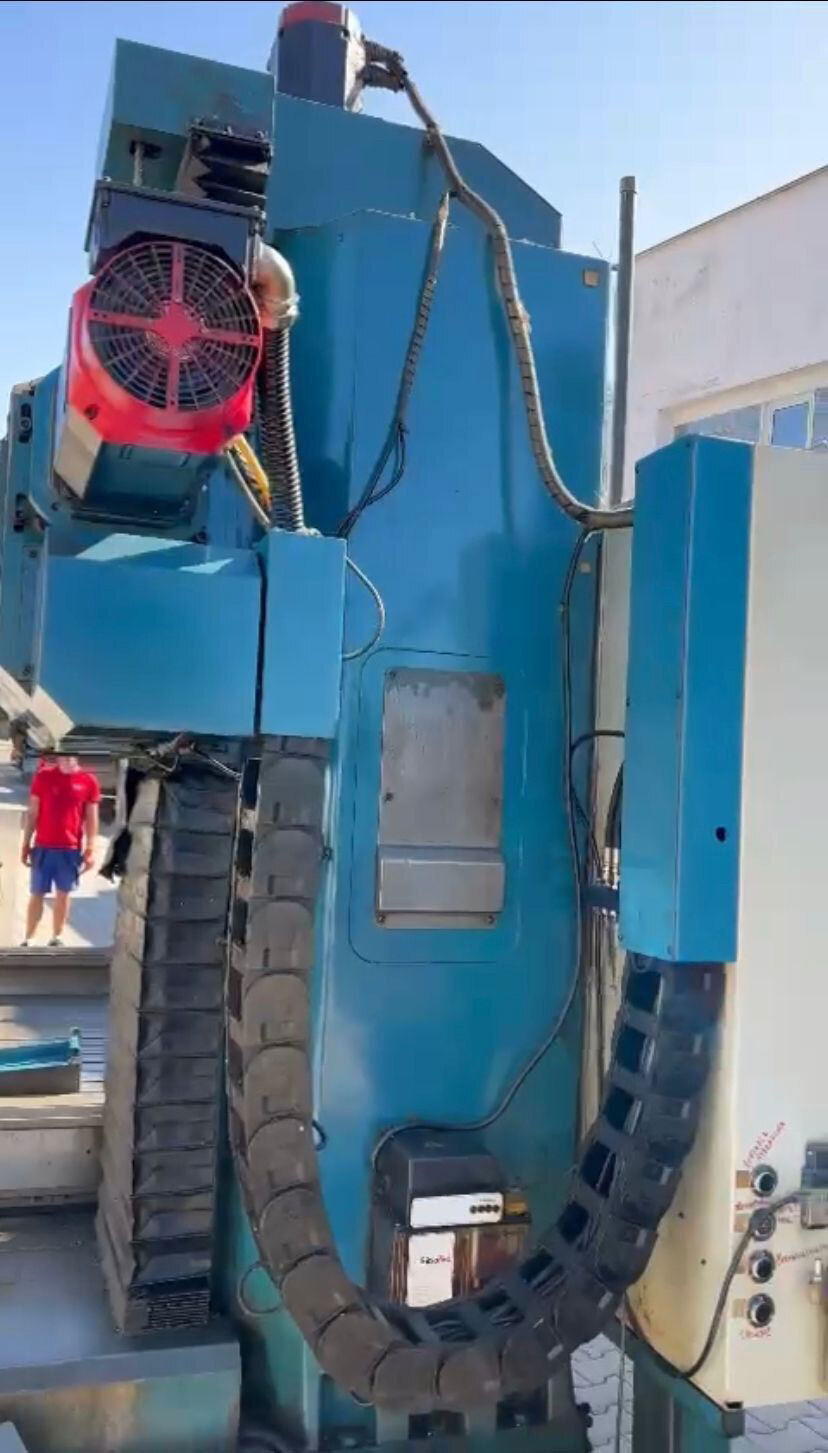

CNC Horizontal Boring Machine SANCO SM FB100NC
The SANCO SM-FB100NC is a Computer Numerical Control horizontal boring machine manufactured by SANCO Machine & Automation Co. Ltd Which is used for precise drilling, milling, and boring operations on large work pieces, typically used in industries such as aerospace, automotive, and energy.
The CNC control can store and execute complex machining programs.
The machine features a horizontal boring spindle that can rotate and move in multiple axes to perform various machining operations. The spindle is capable of high-speed rotation and can accommodate different types of cutting tools, such as drills,end mills, and boring bars.
This machine is equipped with precision linear guides and ball screws for smooth and accurate movement of the spindle and Work piece. Additionally, the CNC control system allows for precise control of cutting parameters, such as spindle speed, feed rate,and tool positioning.
Description:
Machine Type: CNC Horizontal Boring Machine
Machine Make: SANCO
Machine Model: SM-FB100NC
Features: Robust, Versatile, High precision
Technical Specifications:
|
| Year Of Manufacture | 1998 |
|

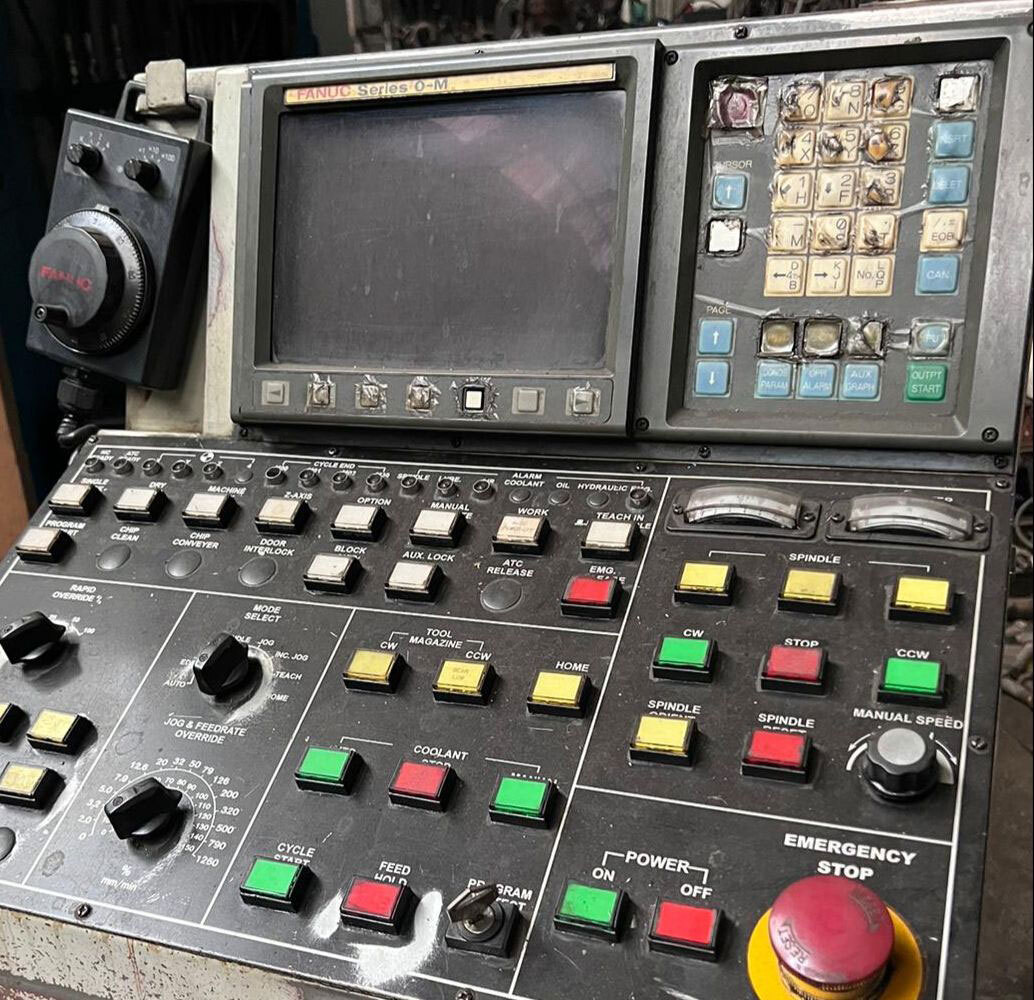

| CNC Control | FANUC OM Alpha Drive |
| Chair | Dimension | 1100 x 800 mm |
| T-Slot | 20 x 7 mm | |
| Table Height From The Floor | 850 mm | |
| Max. Table Load | 1200 Kg | |
| Travels | X Axis | 1200 (1400) |
| Y Axis | 1100 (1300) | |
| Z Axis | 800 (1000) | |
| Distance From The Bottom Of The End Of The Spindle From The Center Of The Table | 300-1100 (300-1300) | |
| Spindle Center Distance From The Table Surface | 100-1200 (100-1400) | |
| Spindle | Motor | 15/10 HP |
| Speed (2 Steps) | 2-3000 rev/min | |
| Clamping Cone | ISO No 50/BT-50 | |
| Shift X, Y, Z | Rapid Feed | 10000 mm/min |
| Cutting Feed | 1-5000 RPM/min | |
| Min Input Growth | 0.001 mm | |
| Servo Detector | Pulsed | |
| Drive Motors | OSY X-Y-Z | 2.05 |
| Hydraulic Circuit | 0.75 KW | |
| Cooling Circuit | 0.2 KW | |
| Lubrication Circuit | 25 In | |
| Next | Amount Of Oil For Hydraulics | 45 |
| Cooling Tank Volume | 90 | |
| Amount Of Oil For Lubrication | 4.6 | |
| Floor Plan Of The Machine | 3900 X 3150 X 3130 mm | |
| Machine Weight | 6800 | |
| Required Power | 25 (30) | |
| NC Control System | Fanuc |
Buy used CNC Horizontal Boring Machine SANCO SM FB100NC in very good working condition at a very competitive price.
