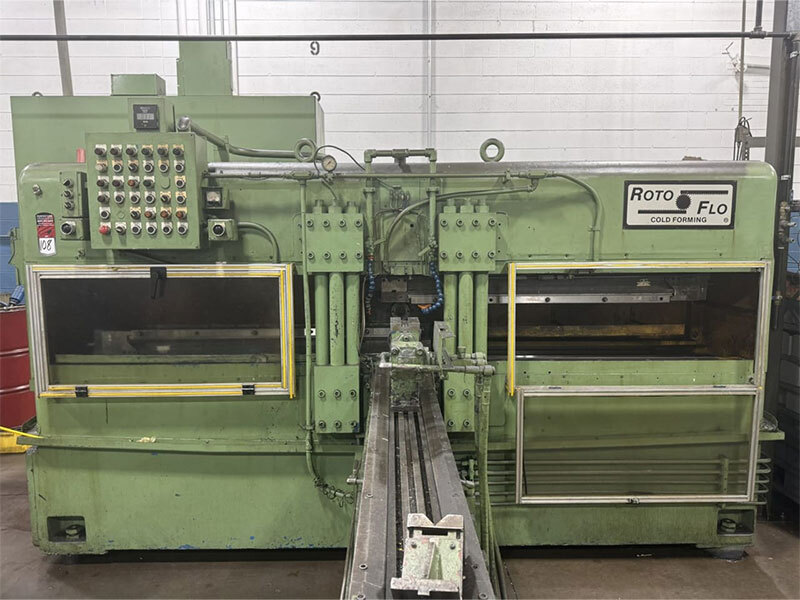

Excello Rotoflo 3251 Cold Spline Rolling Machine
Roto-Flo is the fastest and most economical method of producing involute toothed forms. Many different type of splines, threads, grooves and serrated forms can be rolled - individually or in combination - in just 3 to 7 seconds.
The Roto-Flo process is inherently accurate, with surface finishes of 3 to 6 micro inches obtainable. A wide range of flexibility is provided by the interchangeable tooling feature of these unique machines making Roto-Flo equally suitable for long production runs or intermittent runs of a variety of parts.
Description:
Machine type: Cold Spline Rolling Machine
Machine make: Excello
Machine model: Roto-Flo 3251
Features: Precision Engineering, High Efficiency, Versatile Application, User-Friendly Controls.
Technical Specifications:
| Machine Model | 3251 |
| Maximum Rack Length | 1220 mm |
| Maximum OD Of Part | 51-76 mm (Approx.) |
| Max Face Width Of Rolled Form | 121 mm |
| Diametric Pitch Range | 16-32 and finer |
| Hydraulic Tank Capacity | 250 Gallons |
| Motor Size, (1200 RPM) | 40 HP |
| Machine Dimensions (L X D X H) | 3430 X 2185 X 1880 mm |
Buy Used Cold Spline Rolling Machine Excello Rotoflo 3251 in best working condition with the most competitive rates in the market.
