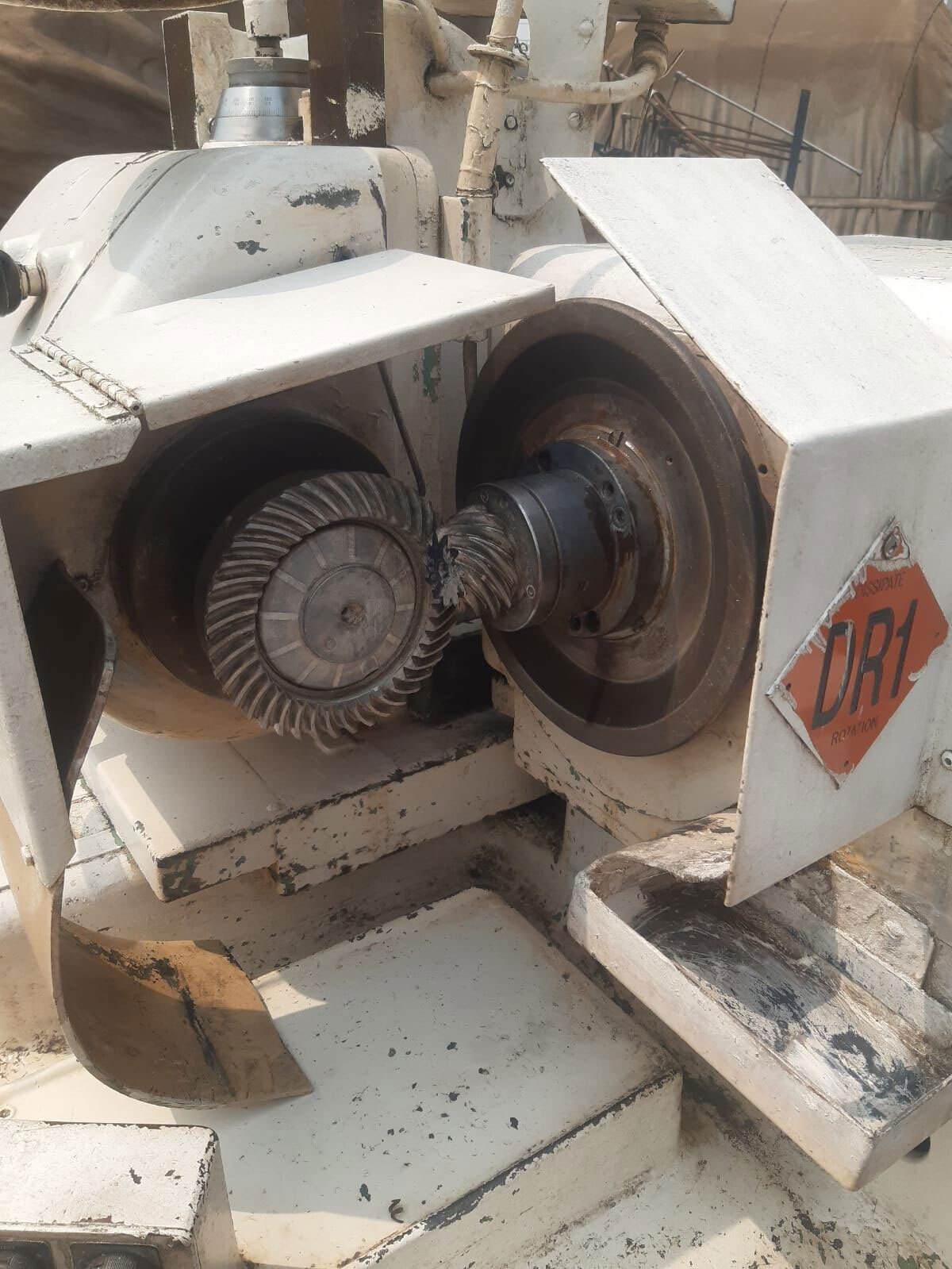

Gleason 17A Hypoid Bevel Gear Tester
The Gleason 17A Bevel Gear Tester is a precision instrument that allows for accurate evaluation of the geometry and quality of bevel gears. It is equipped with advanced measurement capabilities to assess parameters such as tooth profile, tooth contact pattern, backlash,run out, and tooth surface finish.
This type of gear tester operates by mounting the bevel gear onto the machine's spindle and rotating it while the measurement probes and sensors collect data. The data obtained during the measurement process is analyzed and compared against specified tolerances and standards to determine the gear's quality and conformity to design requirements.
Description:
Machine Type: Hypoid Bevel Gear Tester
Machine Make: Gleason
Machine Model: 17A
Features: High Accuracy, Optimal Performance, Long Functional Life.
Technical Specifications:
| CAPACITY | |
| Distance From Center Of Gear Spindle To Nose Of Pinion Spindle (Maximum) | 305 mm |
| Distance From Center Of Gear Spindle To Nose Of Pinion Spindle (Minimum) | 152 mm |
| Distance From Center Of Pinion Spindle To Nose Of Gear Spindle (Maximum) | 197 mm |
| Distance From Center Of Pinion Spindle To Nose Of Gear Spindle (Minimum) | 108 mm |
| Offset Of Gear Spindle Above Or Below Center Of Pinion Spindle (Maximum) | 89 mm |
| Diameter Of Gear (Maximum) | 508 mm |
| PINION SPINDLE | |
| Diameter Of Taper Hole At Large End | 100 mm |
| Taper Per Foot | 15 mm |
| Depth Of Taper | 152 mm |
| Diameter Of Hole Through Spindle | 78 mm |
| Drive Spindle Speed | 1200 RPM |
| GEAR SPINDLE | |
| Diameter Of Taper Hole At Large End | 58 mm |
| Taper Per Foot | 13 mm |
| Depth Of Taper | 152 mm |
| Diameter Of Hole Through Spindle | 52 mm |
| ELECTRICAL EQUIPMENT | |
| Main Motor (Standard Machine) | 5 HP 1800 RPM |
| Hydraulic Pump Motor | 3/4 HP 1800 RPM |
| MISCELLANEOUS | |
| Floor Space | 55 Inch X 63 Inch |
| Net Weight | 2563 Kg |
