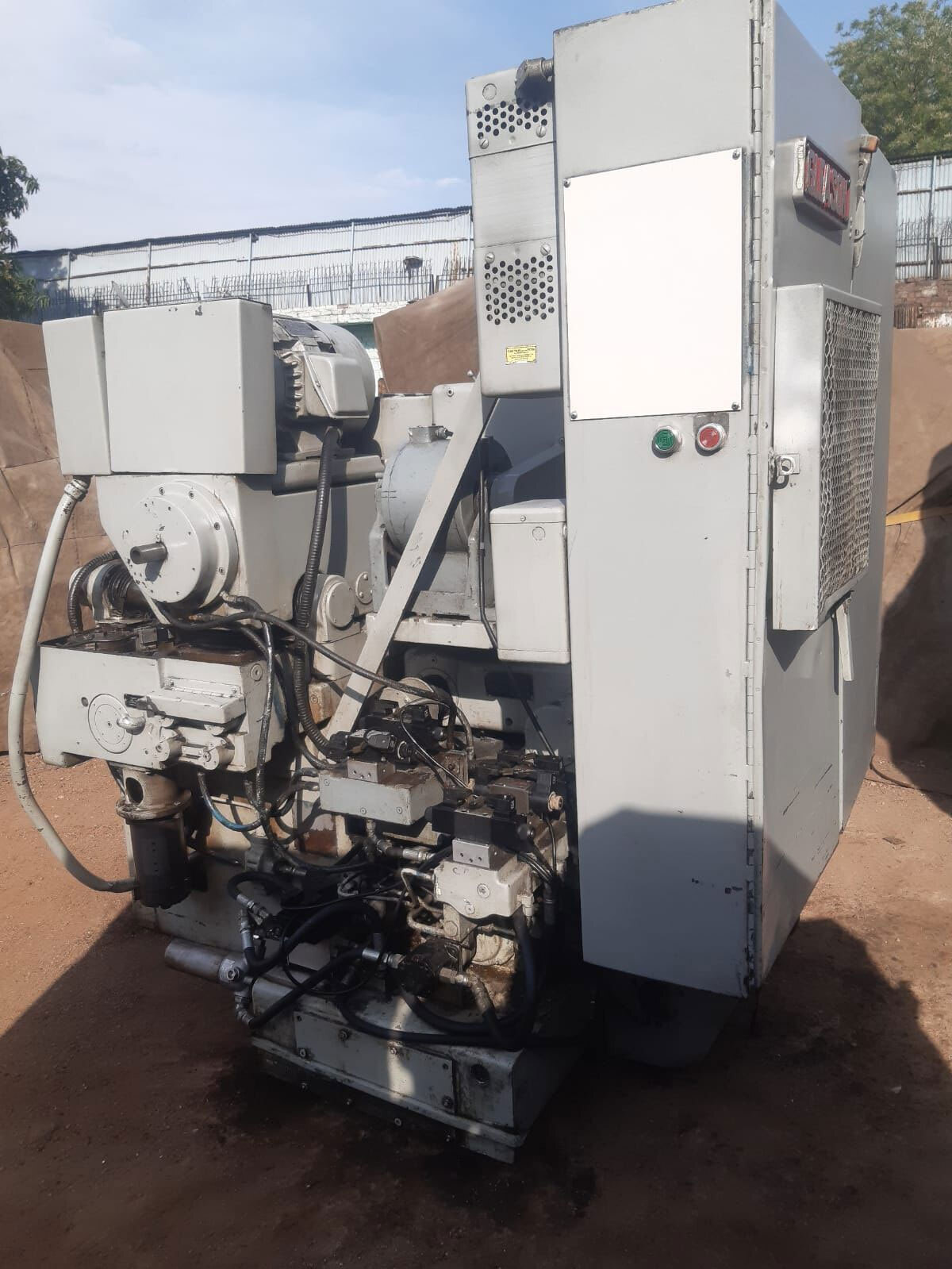

Gleason 503 Hypoid Bevel Gear Lapper
Gleason Corporation is a well-known manufacturer of gear cutting and gear grinding machines,including Bevel Gear Lapping Machines.Bevel gear lapping is a process used to improve the surface finish and accuracy of bevel gears by utilizing a lapping tool and abrasive compounds. Gear lapping involves the use of a lapping tool, typically a fine-grained abrasive material,which is moved in a reciprocating or rotating motion against the gear teeth to remove a small amount of material and achieve a smoother and more precise tooth profile. Hypoid bevel gears are a type of bevel gear commonly used in automotive applications, particularly in rear-wheel drive and four-wheel drive vehicles.
Description:
Machine Type: Hypoid Bevel Gear Lapper
Machine Make: Gleason
Machine Model: 503
Features: Accuracy & High Precision, Long Functional Life.
Technical Specifications:
| CAPACITY | |
| Maximum Gear Diameter | 266 mm |
| Maximum Pinion Diameter | 152 mm |
| Minimum Distance From Center Of Pinion Spindle To Nose Of Gear Spindle | 114 mm |
| Maximum Distance From Center Of Pinion Spindle To Nose Of Gear Spindle | 178 mm |
| Minimum Distance From Center Of Gear Spindle To Nose Of Pinion Spindle | 152 mm |
| Maximum Distance From Center Of Gear Spindle To None Of Pinion Spindle | 228 mm |
| Offset Of Gear Spindle Above Or Below Center Of Pinion Spindle (Maximum) | 95 mm |
| PINION SPINDLE | |
| Diameter Of Taper Hole At Large End | 100 mm |
| Taper Per Foot | 15 mm |
| Depth Of Taper | 76 mm |
| Diameter Of Hole Through Spindle | 63 mm |
| GEAR SPINDLE | |
| Diameter Of Taper Hole A Large End | 58 mm |
| Taper Per Foot | 13 mm |
| Depth Of Taper | 76 mm |
| Diameter Of Hole Through Spindle | 55 mm |
| ELECTRICAL EQUIPMENT | |
| Main Motor | 5 HP, 1800 RPM, 60 Cycle |
| Hydraulic Pump | 3/4 HP, 1800 RPM, 60 Cycle |
| Lapping Compound Pump Motor | 1/2 HP, 1800 RPM, 60 Cycle |
| Oscillating Drive Motor | 1/4 HP, 0 to 1725 RPM, 60 Cycle |
| Mixer Motor | 1/20 HP, 1800 RPM, 60 Cycle |
| MISCELLANEOUS | |
| Floor Space | 71 Inch X 64 Inch |
| Height | 67 Inch |
| Net Weight (Approximate) | 4200 Kg |
Hypoid Bevel Gear Lapper Gleason 503 available at a reasonable price and best working condition.
