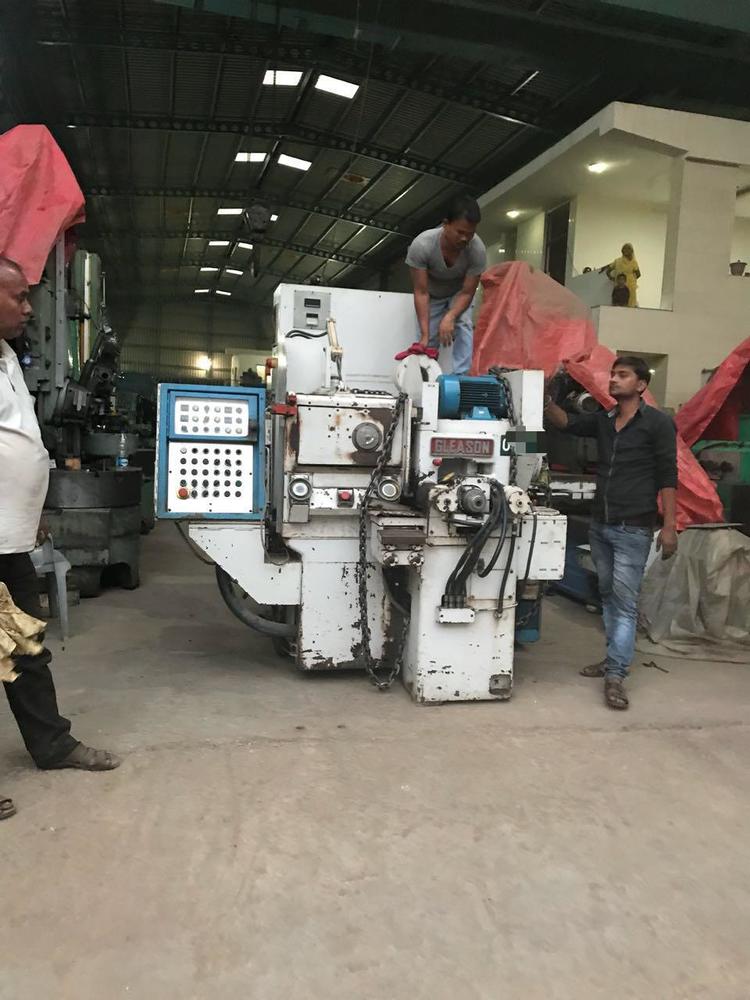

Gleason No 514 Bevel Gear Lapper
We are a trustedImporter and Trader that offers a wide range of used Gleason No 514 Bevel Gear Lapper.
Our offeredmachines are used in many industrial applications. Our range of productssternly verified on many parameters before delivering. We are offering theseMachines in standard specifications. We provide our range of products to ourclients at economical price in the market.
Description:
Machine Type: Bevel Gear Lapper
Machine Make: Gleason
Machine Model: No 514
Features:
Easy Installation,
Pocket friendlyprices,
Minimum Maintenance
TechnicalSpecifications:
| Max Gear Diameter | 266 mm | |
| Max Gearwheel Dia | 152 mm | |
| Min Distance Between Gearwheel Spindle Axis & Gear Spindle End | 114 mm | |
| Max Distance Between Gearwheel Spindle Axis & Gear Spindle End | 178 mm | |
| Min Distance Between Gear Spindle Axis & Gearwheel Spindle End | 152 mm | |
| Max Distance Between Gear Spindle Axis & Gearwheel Spindle End | 228 mm | |
| Max Gear Spindle Offset Up Or Down Over Gearwheel Spindle Axis | 95 mm | |
| Gearwheel Spindle | ||
| Dia Of Taper Opening | 100 mm | |
| Conicity For 1 Feet | 15 mm | |
| Cone Depth | 76 mm | |
| Dia Of Opening In Spindle | 63 mm | |
| Gear Spindle | ||
| Dia Of Taper Opening | 58 mm | |
| Conicity For 1 Feet | 13 mm | |
| Cone Depth | 76 mm | |
| Dia Of Opening In Spindle | 55 mm | |
| Main Electric Motor | 5 HP, 50 Hz, 1500 RPM | |
Buy used Gleason No 514 Bevel Gear Lapper invery good working condition at a very competitive price.
