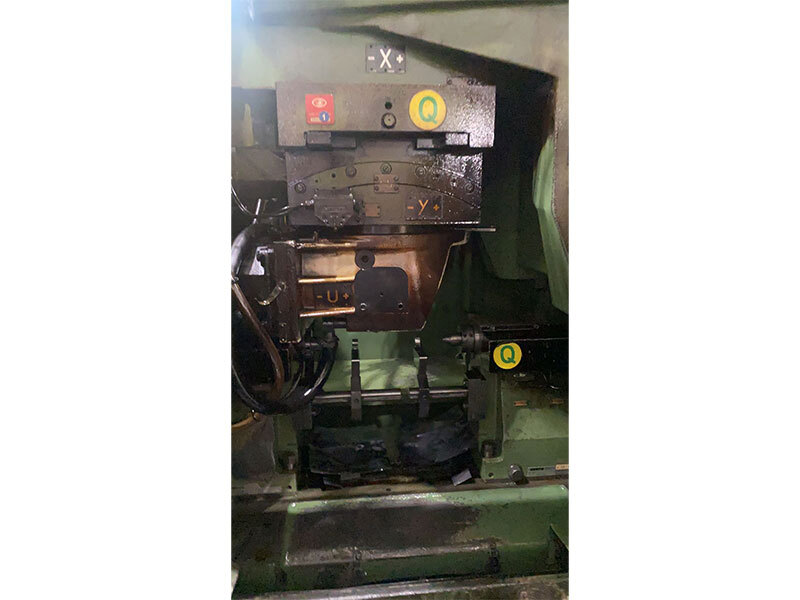

Hurth ZS 240 CNC Gear Shaving Machine
The Hurth ZS 240 CNC Gear Shaving Machine is a specialized piece of machinery used in the production of gears, particularly for finishing and refining the teeth of gears to achieve high levels of accuracy and surface finish. This machine is typically employed in the manufacturing of helical, spur, and other types of gears that require shaving operations to improve tooth profiles and reduce imperfections left by earlier cutting processes.
Description:
Machine Type: CNC Gear Shaving Machine
Machine Make: Hurth
Machine Model: ZS 240
Features of CNC Gear Shaving Machine Hurth ZS 240:
High-Speed Operation: CNC gear shaving machines are designed for high-speed cutting to increase throughput while maintaining quality and accuracy.
Automation: The ZS 240 often comes with features like automatic tool change, automated loading/unloading and part measurement systems. This reduces the need for manual intervention and speeds up the production process.
CNC Control: The ZS 240 is equipped with advanced CNC (Computer Numerical Control) systems, allowing for precise automation and programming of gear shaving operations. This ensures high repeatability and accuracy for mass production or custom gear manufacturing.
Technical Specifications:
| Year Of Manufacture | 2005 |
| CNC Control | FANUC 21 M ALPHA DRIVE |
| Max. Wheel Diameter | 390 mm |
| Implement Width | 50 mm |
| Maximum Module | 8 |
| Minimum Module | 1 |
| Area | 2050 x 700 mm |
| Center Height: Tailstock | 350 mm |
| U-Axis | +/- 22 degree |
| Y-Axis | +/- 2 degree |
| X-Axis | 180 mm |
| Tool Diameter | 300 mm |
| Shaving Cutter Turning Speed Hydraulic Stepless | 45-400 RPM |
| Total Power Requirement | 35 KW |
| Machine Weight (Approx.) | 7500 Kg |
| Machine Dimension (Approx.) | 4200 x 3000 x 2600 mm |
Available for sale, Used CNC Gear Shaving Machine Hurth ZS 240 in as good as new working condition at a very reasonable price.
