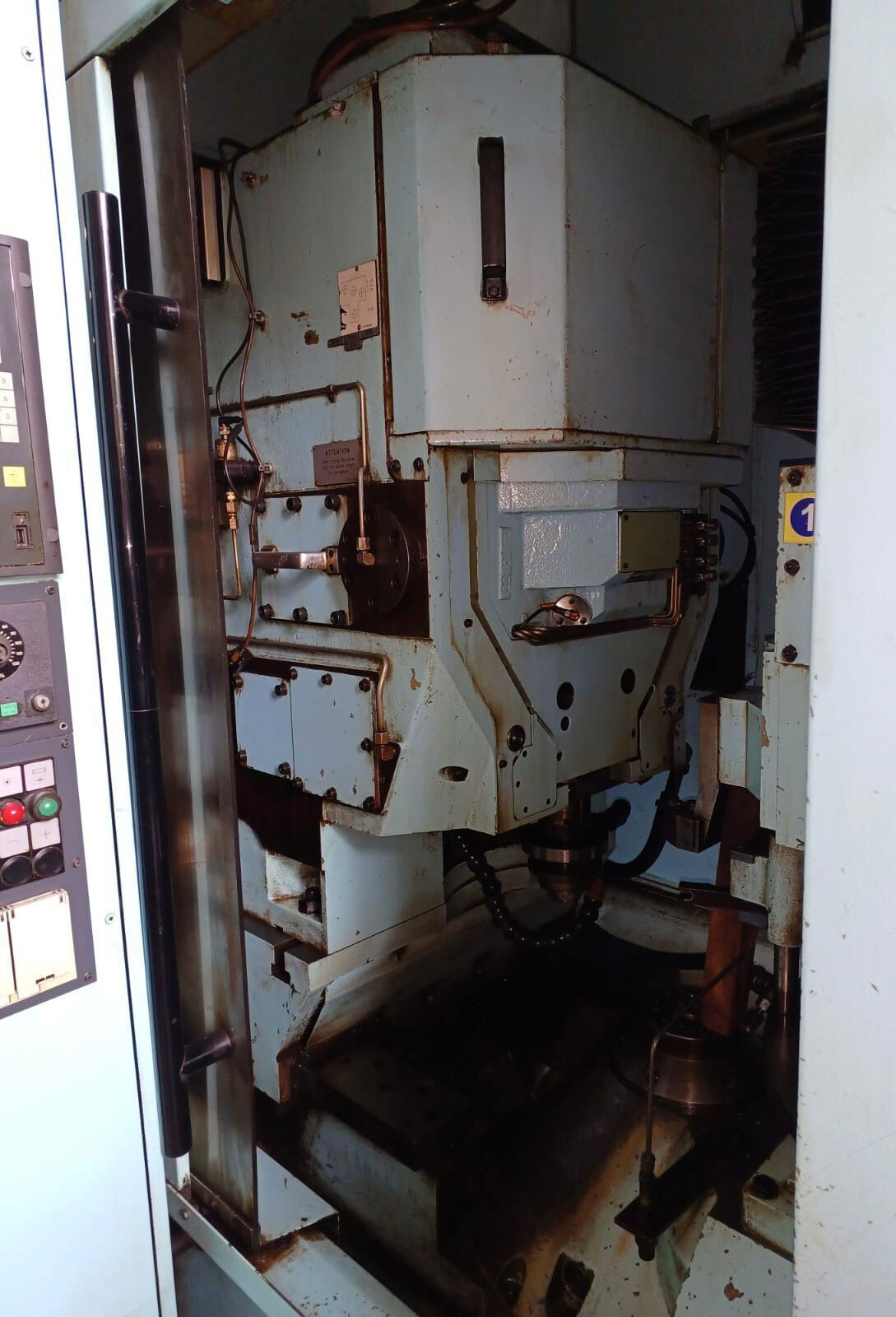

Liebherr LS 150 CNC Gear Shaping Machine
The Liebherr LS 150 CNC Gear Shaping Machine is a precision tool used for gear shaping operations. It's designed to create gear teeth by removing material from a workpiece. The CNC (Computer Numerical Control) aspect means that the machine's movements and operations are controlled by a computer program, ensuring high precision and automation in the gear shaping process. This type of machine is commonly used in industries that require precise gear manufacturing, such as automotive, aerospace, and industrial machinery.
Description:
Machine Type: CNC Gear Shaper Machine
Machine Make: Liebherr
Machine Model: LS 150
Features: Flawless Performance, High Accuracy.
Technical Specifications:
| Machine Model | LS 150 |
| Machine Make | Liebherr |
| Manufacturing Year | 2005 |
| CNC Control | Siemens 840D |
| Range Of Center Distance | 20-220 mm |
| Maximum Radial Speed | 196.85 IPM |
| Maximum Workpiece Diameter | 150 mm |
| Maximum Table Speed | 150 RPM |
| Table Diameter | 145 mm |
| Lateral Column Off-Set Adjustment Range | +/-20 mm |
| Cutter Head: | |
| Drive Capacity | 22.1 HP |
| Maximum Cutting Spindle Speed | 30 RPM |
| Maximum Stroke Number | 1500 Dh Per Minute |
| Maximum Stroke Length | 55 mm |
| Maximum Module | 5 mm |
| Axis Angle Displacement | +/- 0.5 Degrees |
| Maximum Tool Diameter | 240 mm |
| Cutter Spindle: | |
| Interface Type | Steep Taper 40 |
| Cutting Spindle Diameter | 85 mm |
| Stroke Positioning Adjustment: | |
| Stroke Position Adjusting Range | 65 mm |
| Steady Column: | |
| Axial Travel | 300 mm |
| Maximum Steady Column Speed | 1181 IPM |
| Maximum Steady Column Clamp Force | 13 KN |
| Approximate Weight Of Machine | 12.7 Ton |

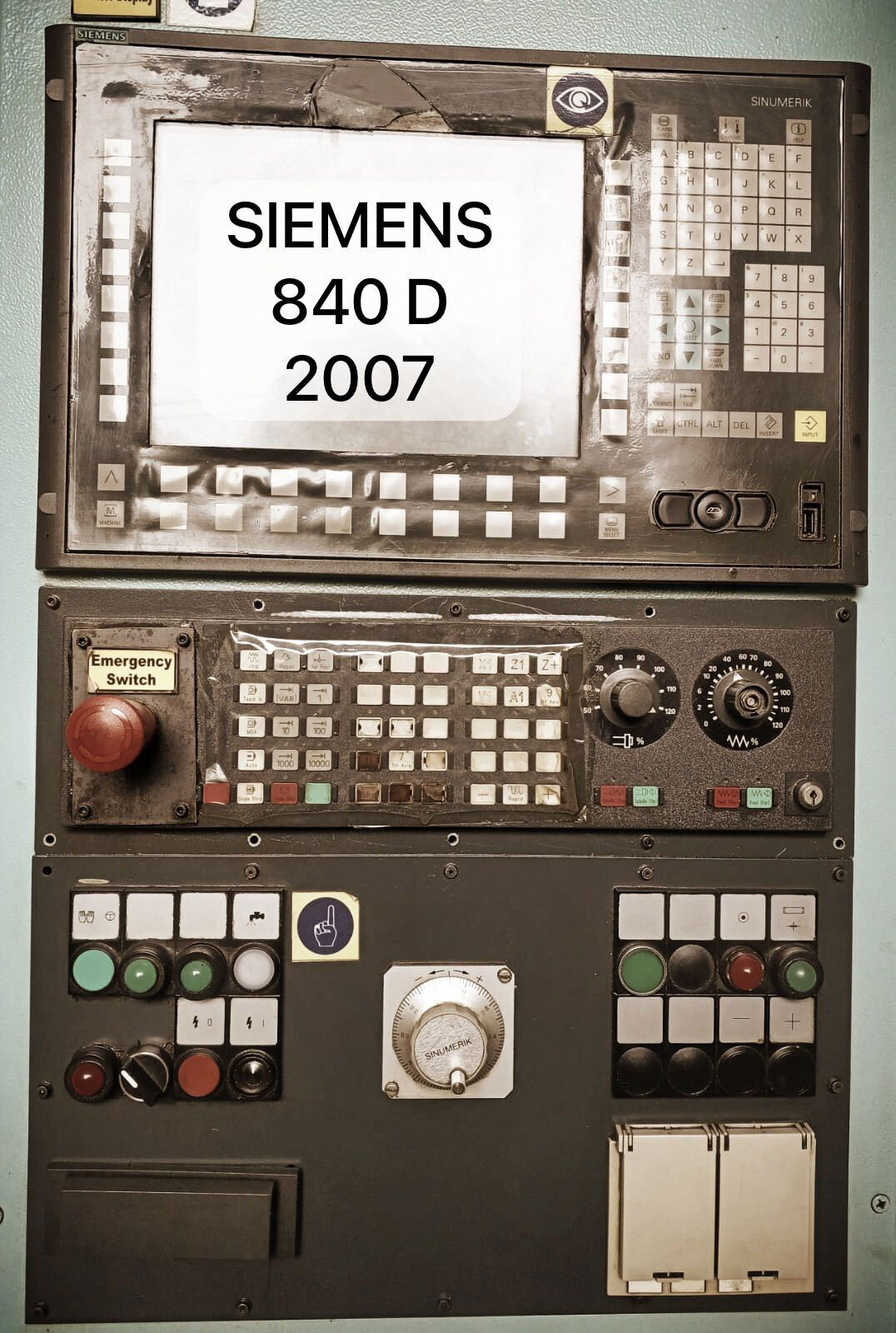

| Machine Equipped With: | Siemens 840D CNC Control 153 Color Screen Integrated PLC In Control Cabinet |
Buy CNC Gear Shaper Machine Liebherr LS 150 in best working condition and best prices.
