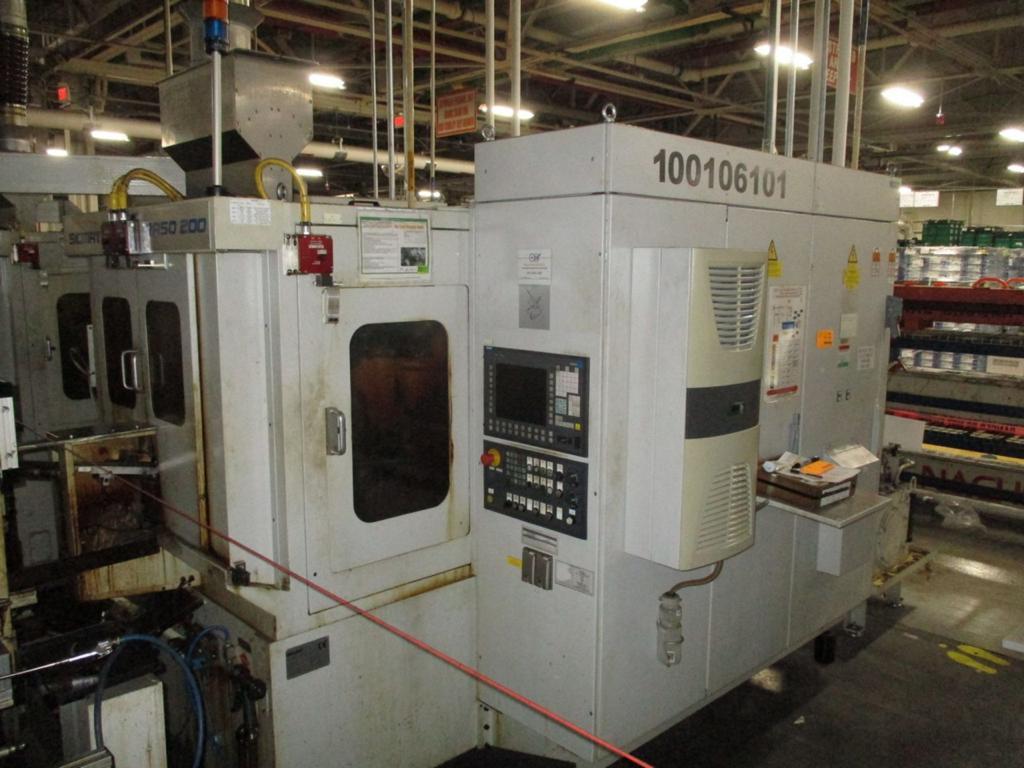

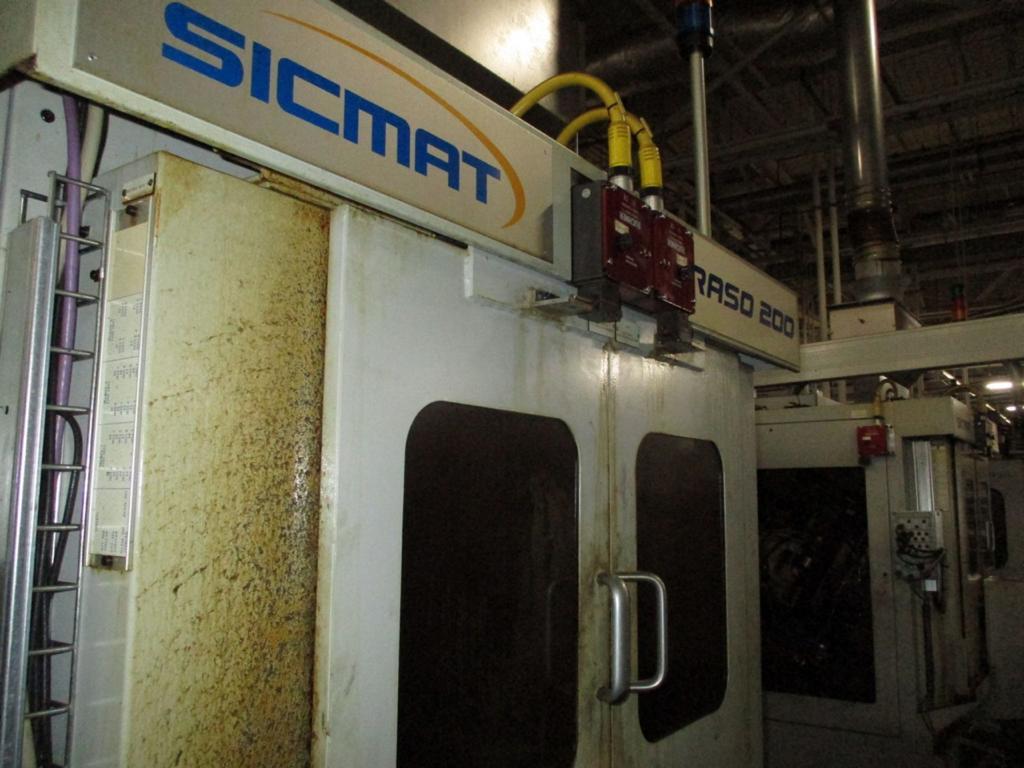

Sicmat RASO 200 CNC Gear Shaving Machine
The CNC Gear Shaver Sicmat RASO 200 is the ideal match for automatic transmission gears, motorcycle gears, pump gears.
We are a trusted Importer and Trader that offers a wide range of used Sicmat RASO 200 Gear Shaver. Our offered machines are used in many industrial applications. Our range of product is sternly verified on many parameters before delivering. We are offering these Machines in standard specifications. We provide our range of products to our clients at economical price in the market.
Description:
Machine Type: CNC Gear Shaving
Machine Make: Sicmat
Machine Model: RASO 200
Features: Easy Installation,Pocket friendly prices, Minimum Maintenance.
Technical Specifications:
| Min/Max Module | 0.8-4.5 mm |
| Min/Max Distance Between Shaving Cutter & Work piece Axis (Standard Tailstock Height) | 110-202 mm |
| Min/Max Dia Of Shaving Cutter | 178-245 mm |
| Shaving Cutter Bore Dia | 63.5 (100) |
| Min/Max Shaving Cutter Width (Standard) | 19-50.8 |
| Max Face To Be Shaved (Standard) | 96 |
| Table Oscillation | + 1.7 degrees |
| RADIAL AXIS | |
| Reading | 0.001 mm |
| Rapid Positioning Speed | 250 mm/min |
| Working Feed | 0.1-4 mm/min |
| Stroke | 92 |
| TAPER & CROWN AXIS | |
| Reading | 0.001 degrees |
| Speed | 61 deg/min |
| Stroke | + 1.7 degrees |
| LEAD AXIS |
|
| Reading | 0.001 mm |
| Speed | 720 mm/min |
| Stroke | -25/+45 mm |
| TRANSVERSE AXIS |
|
| Reading | 0.001 mm |
| Speed | 500 mm/min |
| Stroke | + 8 mm |
| PARALLEL AXIS |
|
| Reading | 0.001 mm |
| Speed | 500 mm/min |
| Stroke | + 30 mm |
| HEADSTOCK AXIS |
|
| Reading | 0.1 mm |
| Speed | 2000 mm/min |
| Stroke | 140 mm |
| TAILSTOCK AXIS |
|
| Reading | 0.1 mm |
| Speed | 2000 mm/min |
| Stroke | 140 mm |
| SHAVING CUTTER SPINDLE |
|
| Speed | 400 RPM |
| WORKPIECE SPINDLE |
|
| Installed Power (With Pump & Coolant Filter) | 26 (27) KVA ca. |
| Net Mass (Electrical Cabinet Included) | 4200 kg ca. |
| Power Circuits | 400 V |
| Standard Exclusion | 50 Hz |
| Auxiliary Circuits (Standard Execution) | 24 D.C. (V) |
Buy used Sicmat RASO 200 CNC Gear Shaving in very good working condition at a very competitive price.
