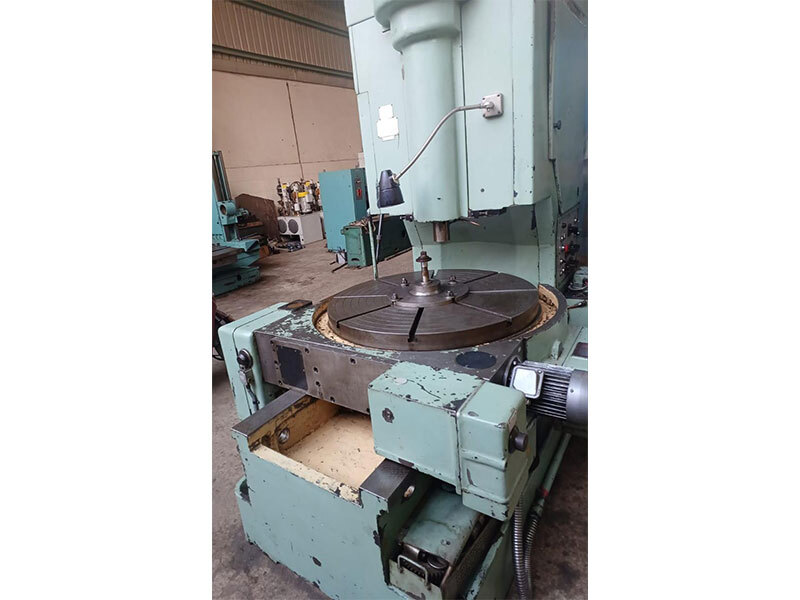

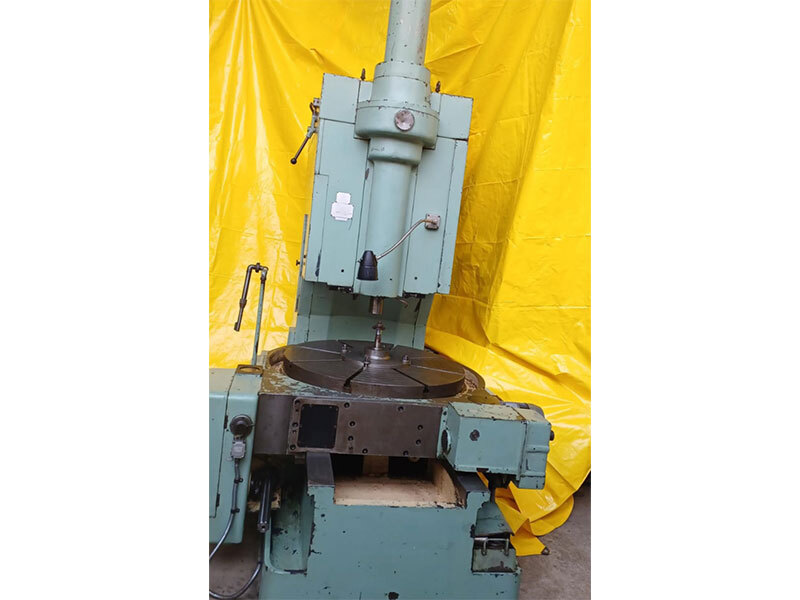

Stanko 5B161 Gear Shaper
The Stanko 5B161 Gear Shaping Machineis a machine tool used for cutting the teeth of internal and external gears. It's manufactured by the Russian company Stankoimport. Gear Shapers like Stanko 5B161 are commonly used in industries where precise gear cutting is essential, such as automotive, aerospace, and machinery manufacturing. They can produce gears with a high level of accuracy and are often utilized in mass production settings. Overall, Russian Stanko Gear Shapers are esteemed for their combination of quality engineering, precision manufacturing, and affordability, making them popular choices in the machine tool industry.
Description:
Machine Type: Gear Shaper
Machine Make: Stanko
Machine Model: 5B161
Features: Robust Construction, Sturdy & Rigid Structure.
Technical Specifications:
| Country Of Origin | Russia |
| Max. Diameter Of Gear | 1250 mm |
| Length Of Stroke | 200 mm |
| Max. Module | 12 Module |
| Table Diameter | 1000 mm |
| Spindle Diameter | 82 mm |
| Distance From Cutter-Axis To The Table-Axis | 0 mm to 630 mm |
| Longitudinal Travel Of Table | 630 mm |
| Min Diameter Of Wheels | 160 mm |
| Max Diameter Of Wheels | 1250 mm |
| Max Tooth Width | 160 mm |
| Number Of Teeth | 12-200 |
| Distance From SliderS Face To The Surface | 150-550 mm |
| Dimension | 3100x1800x3500 mm |
