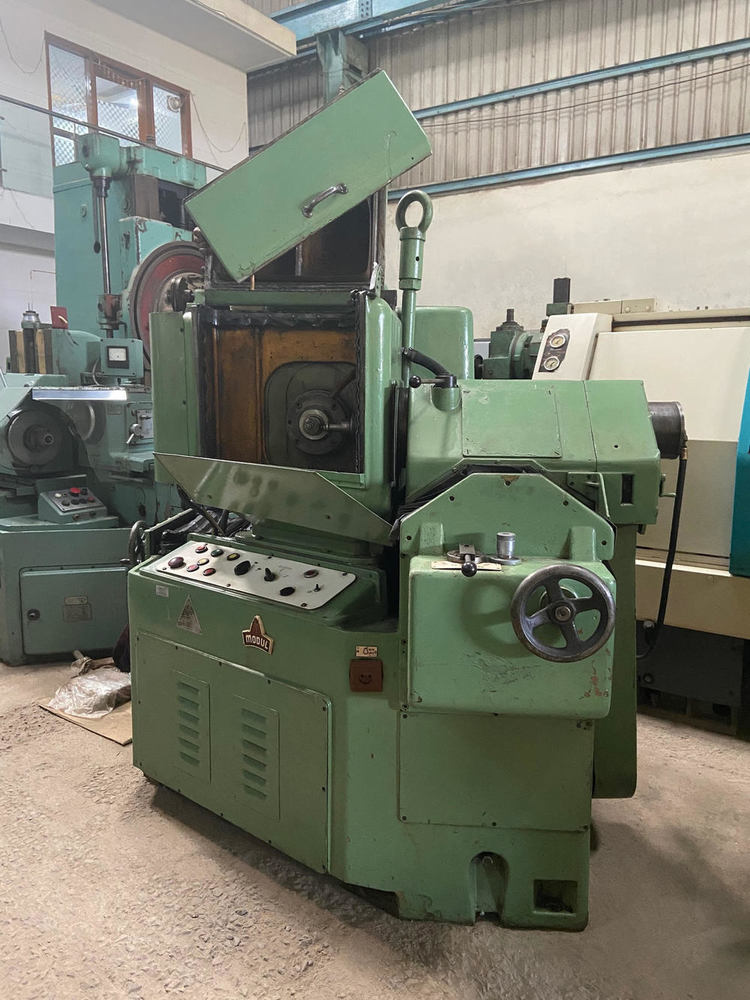

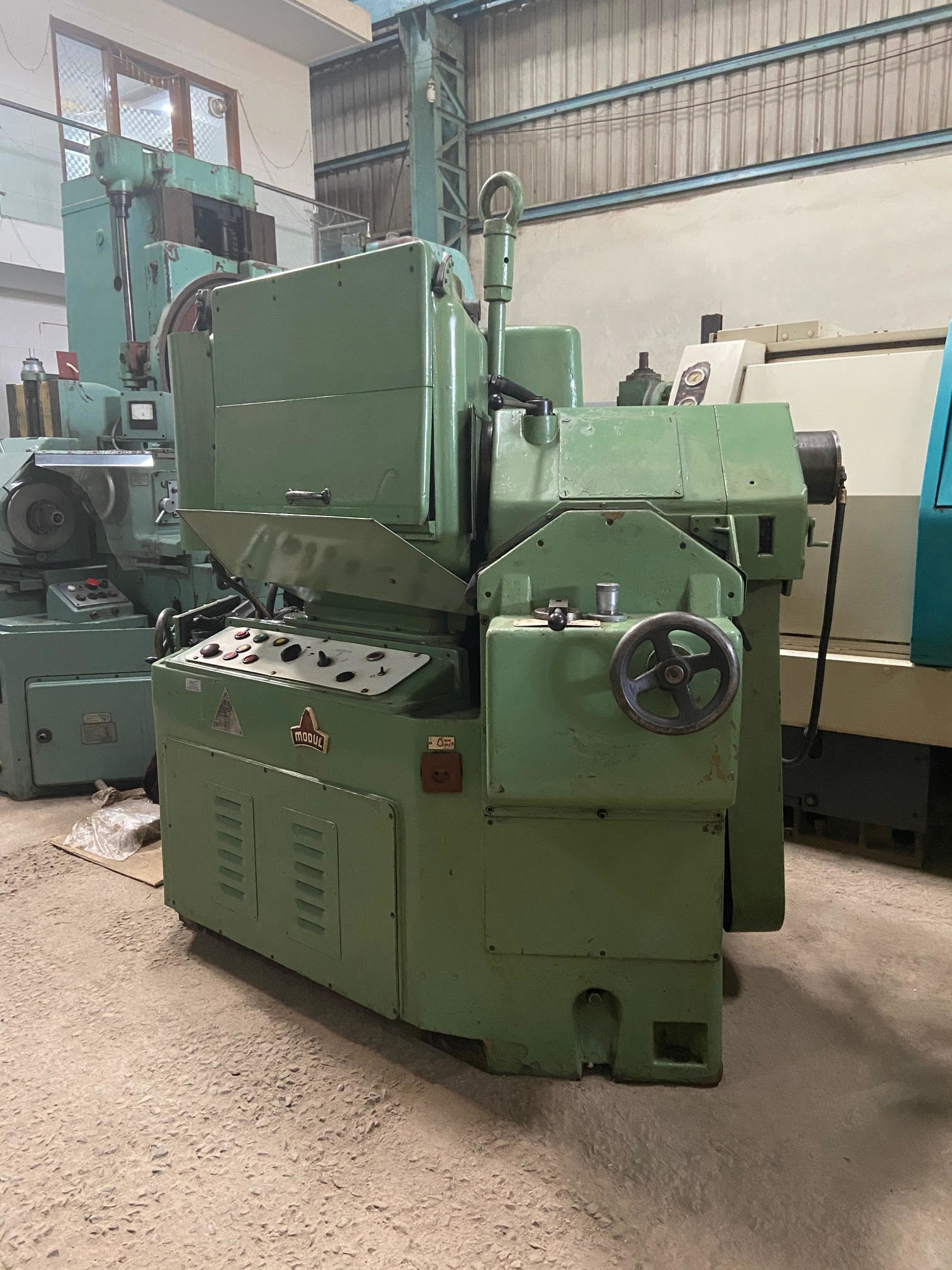

WMW Bevel Lapper ZLK 500
We are trusted Importer and Trader that offers a wide range of used WMW Bevel Lapper ZLK 500
Our offered machines are used in many industrial applications. Our range of product is sternly verified on many parameters before delivering.
We are offering these machines in standard specifications. We provide our range of products tour clients at economical price in the market.
Description:
Machine Type: Bevel Lapper
Machine Make: WMW
Machine Model: ZLK 500
Features:
Easy Installation, Pocket Friendly Prices,Minimum Maintenance
Technical Specifications:
| Control | Conventional |
| Max Wheel Dia | 500 mm |
| Gear Width | 500 mm |
| Workpiece Dia | Min 30 |
| Pinion Dia | Max 355 mm |
| Distance Spindle Head - Tool Holder | 160 - 310 mm |
| Axis Adjustment | +/- 80 mm |
| Tool Adaptor Meter | 100 |
| Turning Speed Range | Spindle 50 - 1250 U/min |
| Oscillating Drives No. Of Swings | Stepless 6 und 12/min |
| Stroke | 0 - 1 mm |
| Axial Adjustment | 0 - 0.5 mm |
| Voltage / Frequency | 380 V / 50 Hz |
| Total Power Requirement | 14 KW |
| Weight Of Machine | 4.5 Ton |
| Dimensions | 3 x 2 x 1.8 Mtr |
Buy used WMW Bevel Lapper ZLK 500 in very good working condition at a very competitive price.
