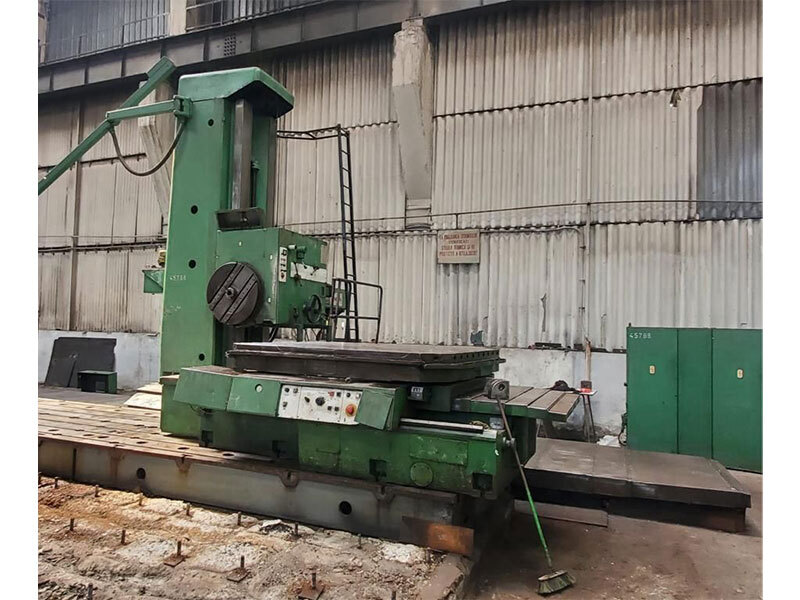

WMW Floor Boring 130 mm BFP 130
The WMW Union BFP 130/6 is a robust Floor-Type Horizontal Boring and Milling Machine, widely recognized for its precision and reliability in handling large-scale industrial machining tasks. It is designed for heavy-duty applications, particularly in industries like aerospace, automotive, and energy, where large and complex workpieces need to be processed with high accuracy.
Description:
Machine Type: Floor Type Horizontal Boring & Milling Machine
Machine Make: WMW Union
Machine Model: BFP 130/6
Key Features of WMW Union BFP 130/6 Floor Boring & Milling Machine:
Multi-Axis Movement Machining: The machine allows movement across 6 axes, which provides high flexibility and the ability to perform complex machining operations on multi-dimensional workpieces.
High Precision & Stability: WMW Union machines are known for their precision, capable of achieving tight tolerances in both boring and milling operations.
Stable Structure: The robust, rigid construction of the floor-type machine helps minimize vibrations during heavy cutting, ensuring stable, high-precision results.
Technical Specifications:
| Country Of Origin | Germany |
| Type Of Machine | Floor Type Boring and Milling Machine |
| Machine Make | WMW Union |
| Machine Model | BFP 130/6 |
| Spindle Diameter | 130 mm |

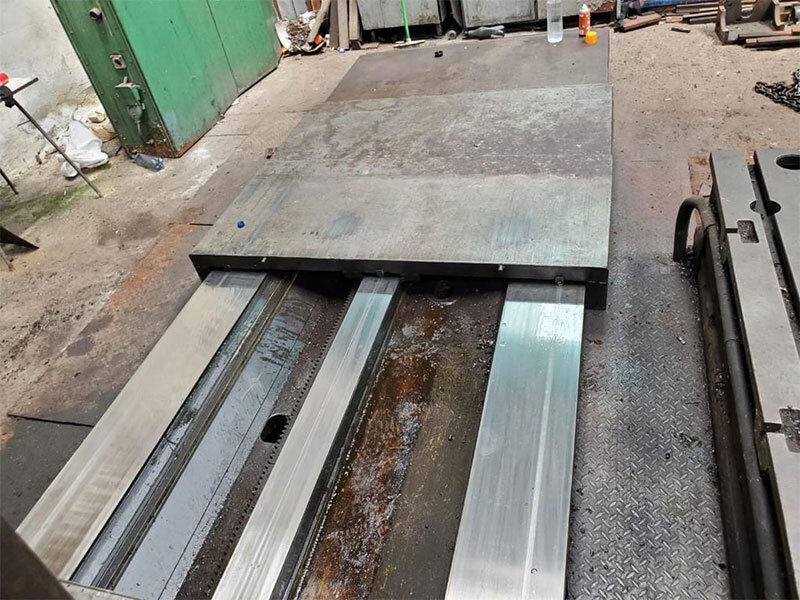

| Floor Plate Rotary Table | 2000 x 2000 mm |
| Column Longitudinal Travel | 7500 mm |
| Head Vertical Travel | 3000 mm |
| Column Cross Travel | 400 mm |
| Spindle Travel | 1000 mm |
| Spindle Speeds | 4.5 to 900 RPM |
| Spindle Taper | ISO 50 (with Power Draw Bolt) |
| Facing Plate Diameter | 850 mm |
| Facing Head Diameter | 800 mm |
| Facing Head Speed | 4.5 to 180 RPM |
| Facing Head Travel | 325 mm |
| Spindle Feeds | 0.03 to 48 MM Per Rev., & 0.0016 to 2.00 TPR |
| Feeds to Head & Column | 24 to 78.7 IPM |
| Total Power Requirement | 40 KW |
Available for sale in Delhi, Used Horizontal Floor Type Boring Machine WMW Union BFP 130/6 in mint mechanical condition .
